Video Display Function and Full Color Tube Chip Color billboard advertising banners

FOB Reference Price:Get Latest Price
US $545-600 / Square Meters | 1 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
kingdigitals
Model Number:
KDS-OF-P8
Usage:
Outdoor
Tube Chip Color:
Full Color
Display Function:
Video
Pixels:
8mm
Screen Dimension:
Customized
Certificate:
CE ROHS FCC
Brightness:
up to 6500cd/sqm
Led chip:
Cree + Nichia + Epistar + Opto + Silan
LED type:
RGB 3in1 SMD3535
Module size:
256x128 mm
Module resolution:
32*16 Dots
Lifespan:
60,000 Hrs
Viewing angle:
140 /140 degree
power consumption:
max.900w/sqm,avg.350w/sqm
Product name:
high quality hd led display p8 outdoor led display
Supply Ability
Supply Ability:
1200 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
exported wooden case by sea or by air
strong carton box by express door to door
Port
shenzhen

Video Display Function and Full Color Tube Chip Color billboard advertising banners

(1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.


(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.


(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.


(4) Line-Double technology is adopted for the picture adjustment.


(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.



Technical Specifications

ParameterUnitValue
Pixel Pitchmm8
LED type SMD3535
Brightnessnits6,500
Pixel densitysqm15,625
Viewing angleangle140°H and 140°V
Lifetimehour60,000 Hrs
Power consumptionw/m2Average 350w/m2, Max 900w/m2
Operation power voltageHZ200-240 V / 50-60 Hz
Cabinet/size (W×H×D)mm1024×1024×120
Cabinet/display surface in sqmm21.048
Cabinet Materia Iron Cabinet
Cabinet weight:kg50kg
IP rating outdoor
Processingbit16bit
Refresh rateHZ2,000Hz
Operating temperaturedegree-10-30 degree
Storage temperaturedegree-20-50 degree
Operation humidity 35-85%
Storage humidity 10-90%


 LED Module

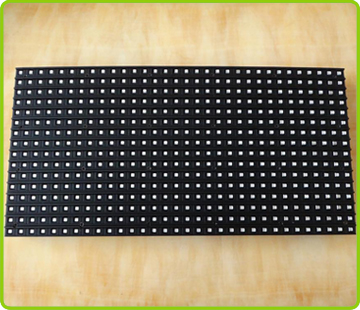

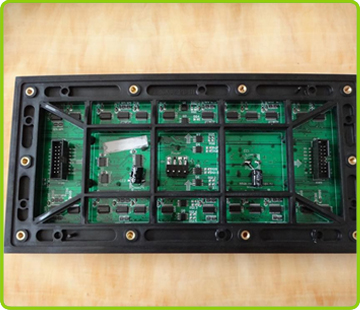

p8 256x128 mm led module front facehigh quality hd led display  p8 outdoor led module size 256x128 mm led display outdoor p8 indoor led module front descriptionp8 256x128 mm LED Module back facehigh quality hd led display  p8 outdoor led module size 256x128 mm led display outdoor SMD P8 back description


Control Card

Receiving-Card high quality hd led display  p8 outdoor led module size 256x128 mm led display receiving-card.jpg Sending-Card
high quality hd led display  p8 outdoor led module size 256x128 mm led display sending-card.jpg


LED Video Screen Cabinet

led iron Cabinet  with signal plughigh quality hd led display  p8 outdoor led module size 256x128 mm led display description-iron-sheet-metal-cabinet stardand led iron cabinethigh quality hd led display  p8 outdoor led module size 256x128 mm led display description led display cabinet back



Application

HD-led-screen-display- mounted -in -the wall  high quality hd led display  p8 outdoor led module size 256x128 mm led display led electronic display

kingdigitals-outdoor-led-display-project-in-united-kingdom
high quality hd led display  p8 outdoor led module size 256x128 mm led display led display screen
kingdigitals-outdoor -commercial-led-video-screen
high quality hd led display  p8 outdoor led module size 256x128 mm led display outdoor led advertising display application
P10-LED-video-wall-project-outdoor-full-color-Republic of Lithuania
high quality hd led display  p8 outdoor led module size 256x128 mm led display truck led mobile message sign
P16-LED-video-screen-project-full-color-Argentina
high quality hd led display  p8 outdoor led module size 256x128 mm led display mounted in building led advertising dsiplay
HD-led-display-for-stadium-in-United Arab Emirates high quality hd led display  p8 outdoor led module size 256x128 mm led display led advertising display used for stadium application







Equipment Machine



high quality hd led display  p8 outdoor led module size 256x128 mm led display equipment machine-1.jpg



Packaging & Shipping



high quality hd led display  p8 outdoor led module size 256x128 mm led display packing shipping.jpg



Products Line



 high quality hd led display  p8 outdoor led module size 256x128 mm led display products line-2

Our Services



We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods  for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.

Technology Training

1. We provide the technology training for free, which contains the operation training  and maintenance training in the factory.

2. We will send our engineers to your country by negotiation.

Documents and Certification:

1. We provide the operation manual, software, test report and so on.

2. We can also provide all kinds of certification such as CE, UL and so on.

CAD Drawing and Fixing

1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.

2. We will send our engineers to your place if we are expected after our negotiation.

Additional service:

We provide you the forwarding information, and some other information ,such as flight box, structure information for your reference for free.

Panyment

Different countries payment different ways
