Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: KINGDIGITALS
  • Model Number: KDS-IF-M10
  • Usage: Indoor
  • Tube Chip Color: Full Color
  • Display Function: Video
  • Pixels: 10 mm
  • Screen Dimension: customized
  • LED Chip: Epistar
  • Driving IC: MBI 5020
  • Warranty: Three years
  • Brightness: 1500 nits
  • Module size: 320x160 mm

Packaging & Delivery

Packaging Details Wooden case&Flight case& Cardboard case
Delivery Time 3~7 days

 KINGDIGITALS 2017 Latest Indoor P10 LED Module Indoor P10 LED dispaly



Product Description



(1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.

(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.

(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.

(4) Line-Double technology is adopted for the picture adjustment.

(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.

(6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.

Spec and Parameters:

Pixel Pitch:10mm

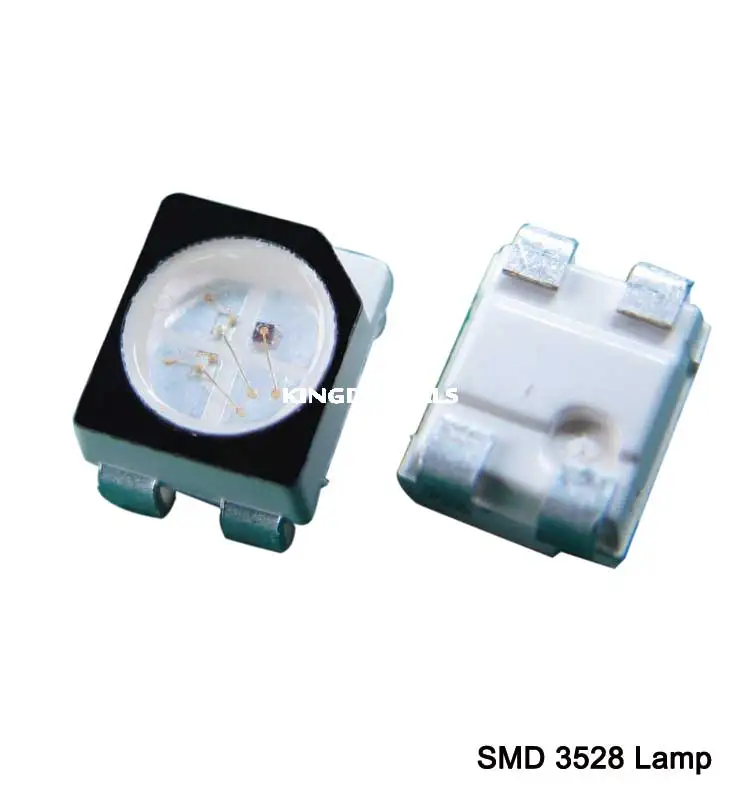

Pixel Configuration:SMD3528 1R1G1B 3 in 1
Pixel density:10000 dots/m2
Driving method:real 1/8 scan
Viewing angle:140°V and 140°H
Brightness:1200-5000nits(cd/m²)
power consumption:average 300w/m2, max 650w/m2
Cabinet Material:Steel/Aluminum
Cabinet weight:Steel 40kg/ m2,Aluminium 30kg/m2
Standard Module size:160mm×160mm×18mm
Standard Cabinet Size for option:L960mm×H960mm×150mm/L1280mm×H960mm×150mm
Working and Storage Humidity:20-90% RH
Working Voltage:AC 110v-240v ±10% 50-60Hz
Processing:14bit-16bit
Refresh Rate:400Hz-4800Hz
Working temperature:-20°C-+60°C
Application:indoor use
IP Rating:IP30









Company Information













Packaging & Shipping















Our Services





Warranty:



We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods  for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.



Technology Training:



1. We provide the technology training for free, which contains the operation training  and maintenance training in the factory.

2. We will send our engineers to your country by negotiation.



Documents and Certification:



1. We provide the operation manual, software, test report and so on.

2. We can also provide all kinds of certification such as CE, UL and so on.



CAD Drawing and Fixing:



1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.

2. We will send our engineers to your place if we are expected after our negotiation.



Additional service:



We provide you the forwarding information, and some other information ,such as flight box, structure information for your reference for free.
