KINGDIGITALS Indoor P3 LED Wall, P3 LED Video wall

FOB Reference Price:Get Latest Price
US $1,000-1,200 / Square Meters | 1 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
kingdigitals
Model Number:
KDS-IF-P3
Usage:
Indoor, indoor
Tube Chip Color:
Full Color
Display Function:
Video
Pixels:
3mm
Screen Dimension:
customized
LED lamp:
SMD 2121
Module Size:
192X192mm
Module Resolution:
64 x 64 pixel
View Angle(H/V):
160/160 degree
Working Temperature:
-20℃~60℃
Software:
LED Studio
Lifespan:
50,000 hrs
Certificates:
CE ROHS FCC
Supply Ability
Supply Ability:
1500 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
wooden case & flight case
Port
SHENZHEN
Lead Time :
15 working days

KINGDIGITALS Indoor P3 LED Wall, P3 LED Video walln display



Product Description



(1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.


(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.

(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.

(4) Line-Double technology is adopted for the picture adjustment.

(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.


Technical Specifications :

ParameterUnitValue
Pixel Pitchmm3
LED type BLACKSMD2121
Brightness(1/32 Scan)nits>1200
Pixel densitysqm111111
Viewing angleangle160°H and 160°v
Lifetimehour50000 hrs
Power consumption(1/30 Scan)w/m2average 200w/m2, max 500w/m2
Operation power voltageHZ200-240 V / 50-60 HZ
IP ratingIP X4only indoor
Processingbit16bit
Refresh rateHZ3840 HZ
Operating temperaturedegree-10-30 degree
Storage temperaturedegree-20-60 degree
Operation humidity 35-85%
Storage humidity 10-90%
Contrast Ratio 5000:1
Control Method Synchronization Control
Signal input Model AV/CVBS/VGA/DVI/HDMI/SDI/DP
Video play capability 2K/4K



LED Display-Die Cast cabinet

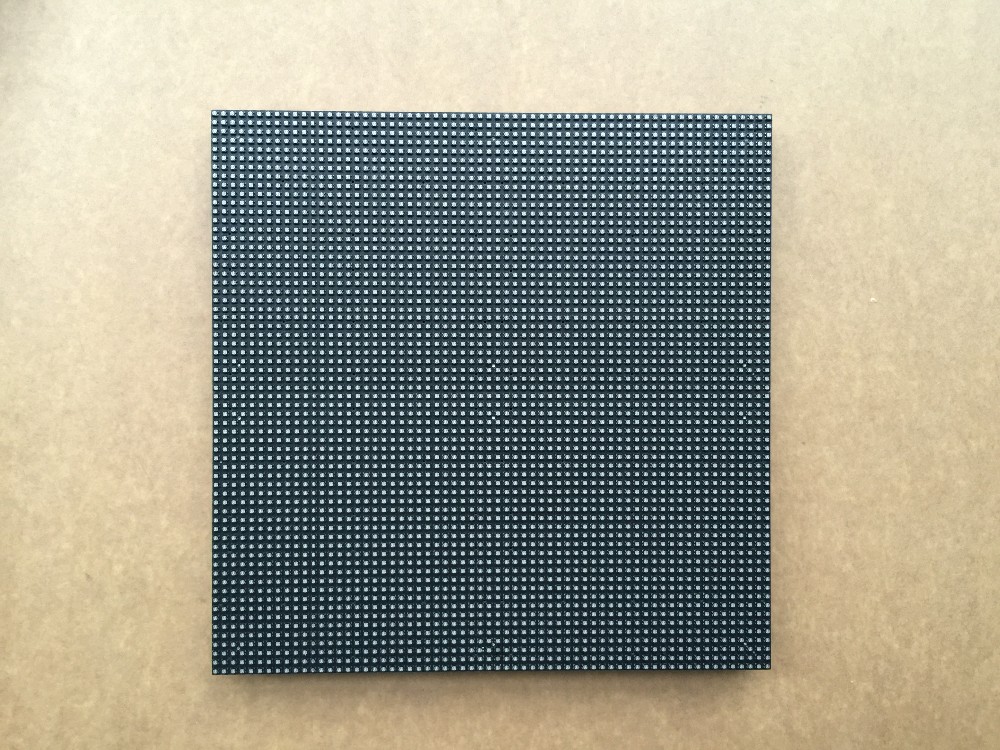

Indoor P3 LED Module 192 x 192mm front face



P3 without mask 02.jpg

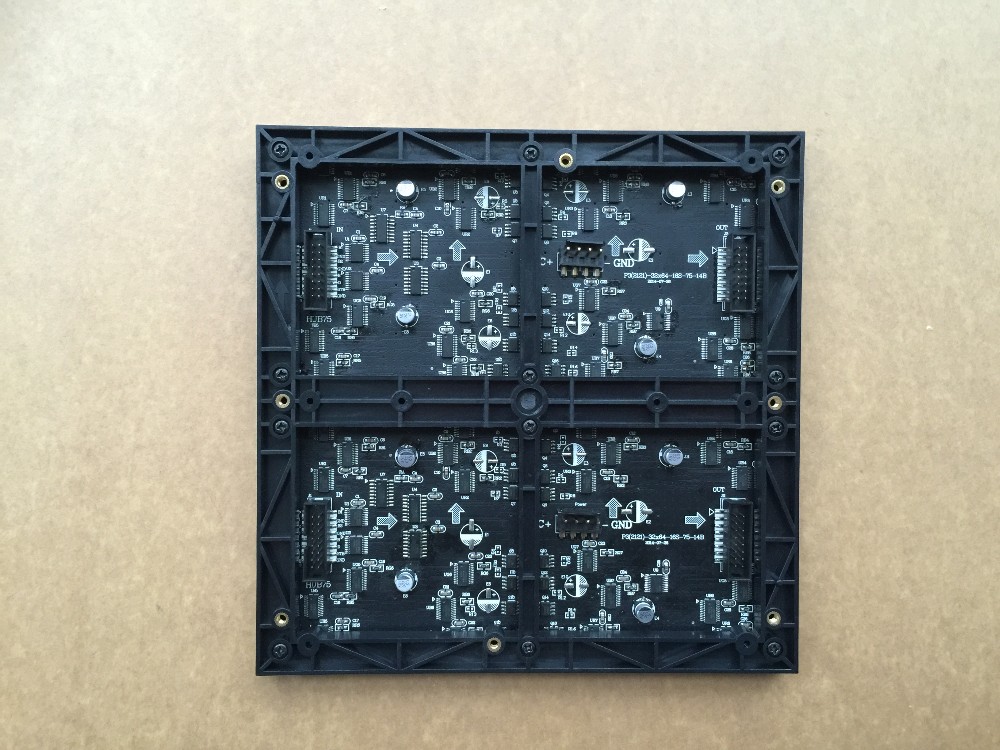

Indoor P3 LED Module 192 x 192mm back face

P3 Back.jpg



Control Card

Receiving-Card receiving-card.jpg Sending-Card



Application



HD-led-screen-display- mounted -in -the wall application 6.jpg

kingdigitals-indoor -led-display-screen-case-in-Laos application 1.jpgkingdigitals-indoor-commercial-led-video-screen    application 3.jpg
P3-LED-video-wall-project-indoor-full-color-Republic of Lithuania
application 2.jpg
PH2.5-LED Display-wal-screenl-hilton-hawaiian -village
application 4.jpg
HD-indoor-color-led-display-for-hotel-in-United Arab Emirates   application 5.jpg




Equipment Machine

 equipment machine-1.jpg

Packaging & Shipping

 packing shipping.jpg

Products Line

 products line-2

Our Services



Warranty:

We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods  for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.



Technology Training:

1. We provide the technology training for free, which contains the operation training  and maintenance training in the factory.

2. We will send our engineers to your country by negotiation.



Documents and Certification:

1. We provide the operation manual, software, test report and so on.

2. We can also provide all kinds of certification such as CE, UL and so on.



CAD Drawing and Fixing:

1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.

2. We will send our engineers to your place if we are expected after our negotiation.



Additional service:

We provide you the forwarding information, and some other information ,such as flight box, structure information for your reference for free.
