KINGDIGITALS Outdoor P5 LED Display screen

FOB Reference Price:Get Latest Price
US $900-1,000 / Square Meters | 1 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
kingidgitals
Model Number:
kds-of-p5
Usage:
Outdoor
Tube Chip Color:
Full Color
Display Function:
Video
Pixels:
5mm
Screen Dimension:
Customized
Brightness:
more than 6500cd/sqm
Certificate:
CE ROSH FCC
LED chip:
Cree + Nichia + Epistar + Opto + Silan
LED type:
RGB 3in1 SMD2727
Module size:
160mm*160mm
Module resolution:
32*32dots
Viewing angle:
140 /140 degree
Life span:
60,000 Hrs
power consumption:
max 500w/sqm.avg 180w/sqm
Product name:
Outdoor P5 LED Display screen
Supply Ability
Supply Ability:
2000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
wooden case by sea
strong carton box by express door to door
flight case by air
Port
Shenzhen
Lead Time :
Shipped in 15 days after payment

KINGDIGITALS Outdoor P5 LED Display screen

(1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.


(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.


(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.


(4) Line-Double technology is adopted for the picture adjustment.


(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.



Technical Specifications

ParameterUnitValue
Pixel Pitchmm5
LED type SMD2727
Brightnessnits>6,500
Pixel densitysqm40,000
Viewing angleangle140°H and 140°V
Lifetimehour60,000 Hrs
Power consumptionw/m2Average 300w/m2, Max 900w/m2
Operation power voltageHZ200-240 V / 50-60 HZ
Cabinet/size (W×H×D)mm960×960×80
Cabinet/display surface in sqmm20.9216
Cabinet Materia Iron Cabinet
Cabinet weight:kg40 kg
IP rating outdoor
Processingbit16bit
Refresh rateHZ2,000Hz
Operating temperaturedegree-10-30 degree
Storage temperaturedegree-20-50 degree
Operation humidity 35-85%
Storage humidity 10-90%


 LED Module

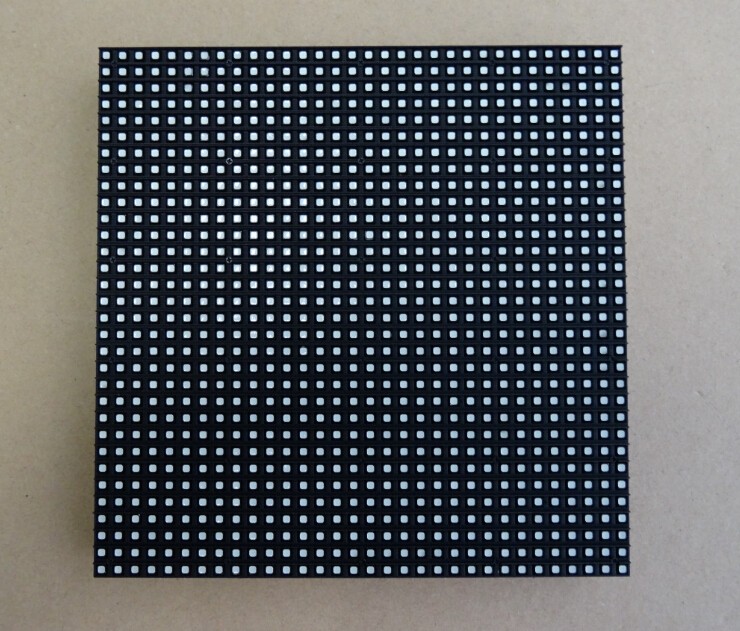

P5 160 x 160 mm led module front face

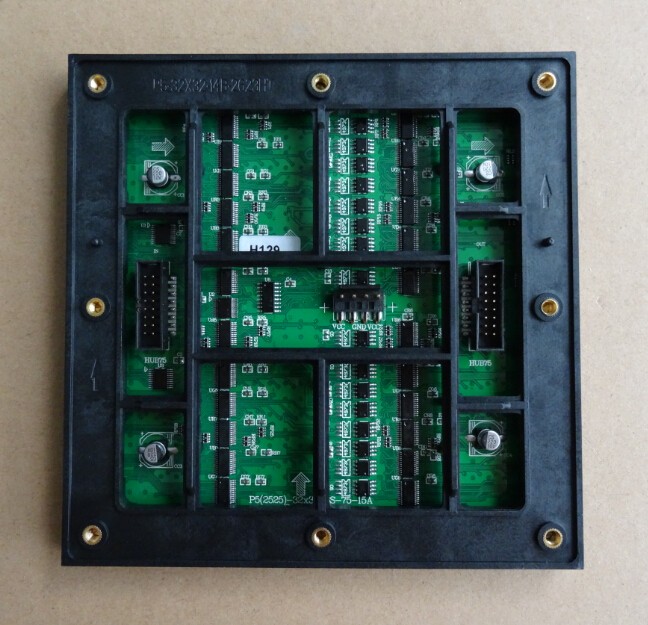

P5 160 x 160 mm led module back face




Control Card

Receiving-Card  Sending-Card


LED Video Screen Cabinet

led iron Cabinet  with signal plug stardand led iron cabinet



Application

HD-led-screen-display- mounted -in -the wall

kingdigitals-outdoor-led-display-project-in-united-kingdom
kingdigitals-outdoor -commercial-led-video-screen
P10-LED-video-wall-project-outdoor-full-color-Republic of Lithuania
P16-LED-video-screen-project-full-color-Argentina
HD-led-display-for-stadium-in-United Arab Emirates







Equipment Machine





Packaging & Shipping





Products Line





Our Services



We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods  for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.

Technology Training

1. We provide the technology training for free, which contains the operation training  and maintenance training in the factory.

2. We will send our engineers to your country by negotiation.

Documents and Certification:

1. We provide the operation manual, software, test report and so on.

2. We can also provide all kinds of certification such as CE, UL and so on.

CAD Drawing and Fixing

1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.

2. We will send our engineers to your place if we are expected after our negotiation.

Additional service:

We provide you the forwarding information, and some other information ,such as flight box, structure information for your reference for free.

Panyment

Different countries payment different ways
